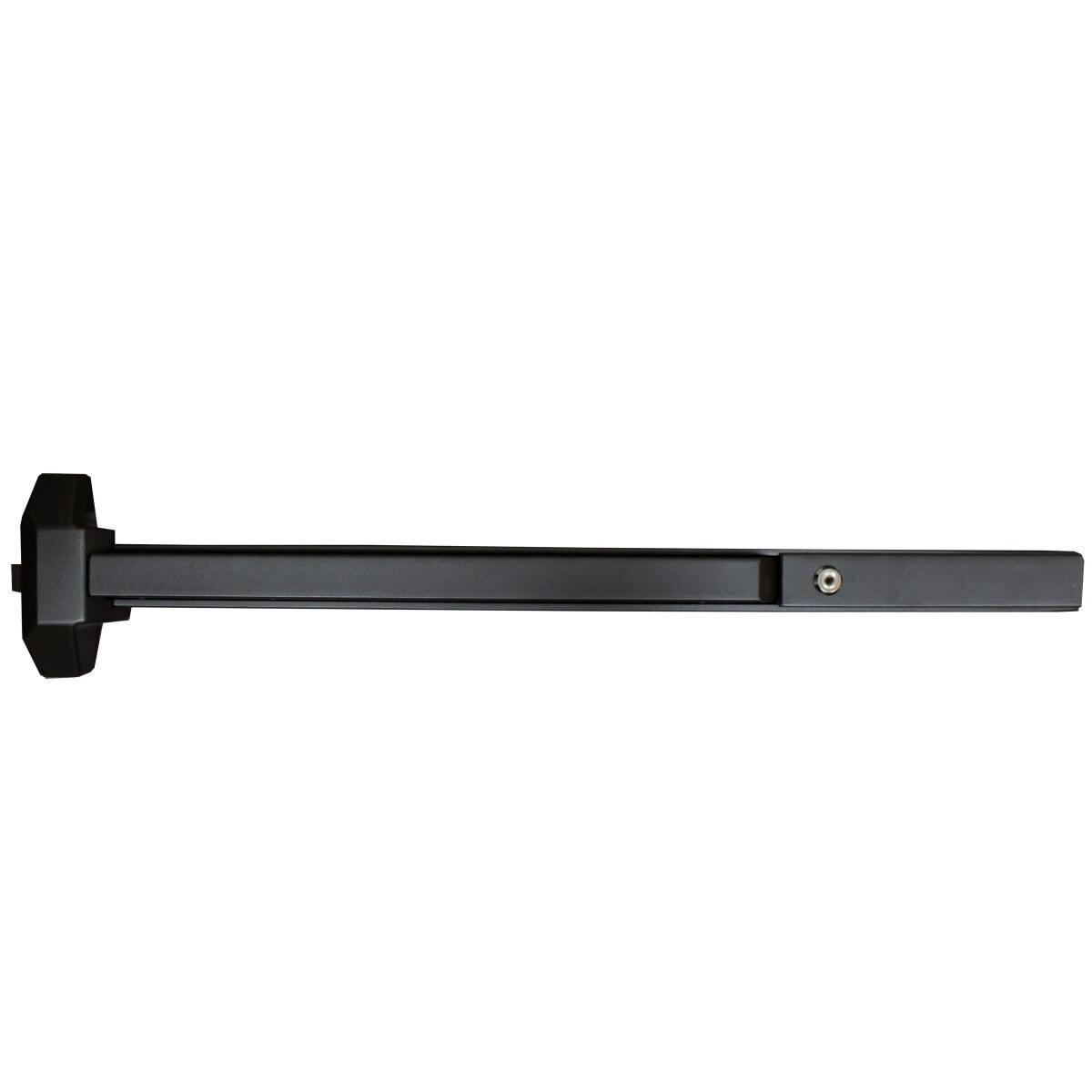

4701 RIM O 36" DBZ 36" Rim Exit Device - Dark Bronze

4701 RIM O 36" DBZ 36" Rim Exit Device - Dark Bronze
• ANSI/BHMA A156.3-2014 Grade 1
• UL305 Listed for panic hardware
• UL/cUL Listed for up to 3 hours for “A” labeled doors (rim device)
• UL/cUL Listed for up to 1-1/2 hours for “B” labeled doors (SVR device)
• Complies with ANSI 117.1 for accessible buildings and facilities
• 36’’ field sizeable to 30’’ door
• Fits 1-¾” thick doors
• Escutcheon measures 2-5/8’’ x 8’’ with 2-3/4” projection
• Trims have a steel body with zinc handle
• CE 47 requires a 3902 mortise cylinder with standard cam, sold separately
