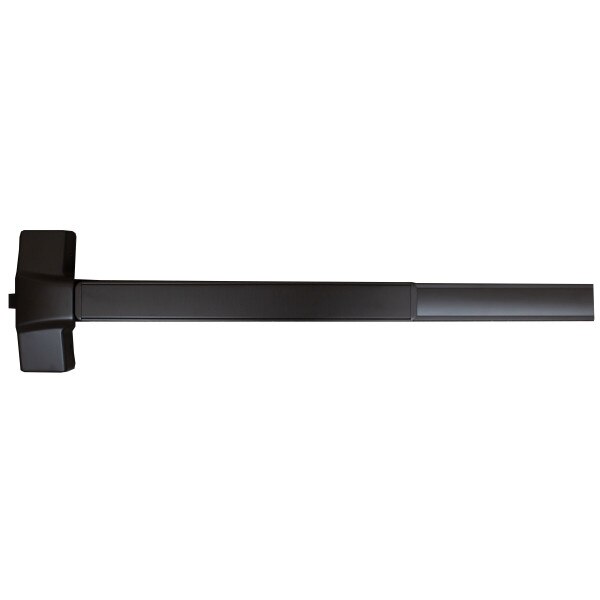

4501 RIM F 36" US10B 36" Grade 1 Fire Rated Rim Exit Device - Oil-Rubbed Bronze

4501 RIM F 36" US10B 36" Grade 1 Fire Rated Rim Exit Device - Oil-Rubbed Bronze
• ANSI/BHMA A156.3-2014 Grade 1
• UL305 Listed for Panic Hardware
• UL/cUL Listed for up to 3 hours for “A” label single doors
• Complies with ANSI A117.1 for accessible buildings and facilities
• 36’’ field sizeable to 30’’ panic-rated door and 28” fire-rated door
• Fits 1-3/4” - 3” thick doors
• 3/4” throw, pullman type with automatic dead-latching, stainless steel
• Escutcheon measures 2-3/4’’ x 10-3/4” with 2-11/16” projection
• CE45 requires a 3902 mortise cylinder with standard cam, sold separately
