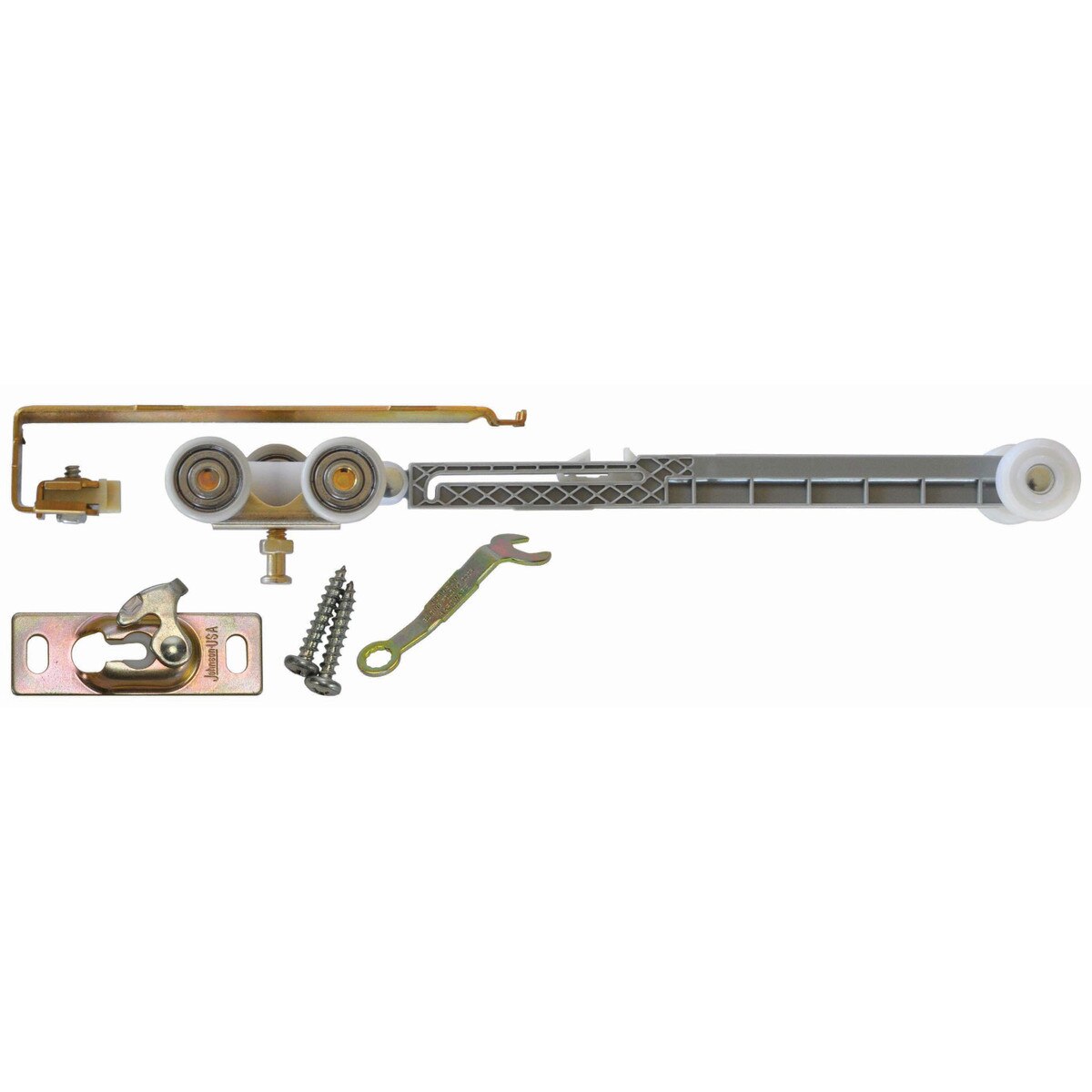

1060 Soft-Close Hanger Set

The 1060 Soft-Close Kit contains a single soft-close actuator only. For single direction soft door operation, the 1060 must be used in combination with a 1125 Door Hanger. For bi-directional soft door operation 2 1060's are required. Soft-Close kits can be used to convert current 100 Series installations to soft-close operation or are available prepackaged with select 100 Series Hardware Sets for new installations.

- Doors up to 200 lbs. are smoothly braked and then pulled into the closed position
- Holds door securely in place when closed
- Prevents pinched fingers between the door and the jamb
- To equip a door for both a soft open and a soft close, use two sets of 1060 hardware
- For use with new or existing Johnson Hardware sliding and pocket door hardware with 100 series track:
- 500, 1560, 1562 & 2710 pocket door hardware
- 100MD multi-pass door hardware
- 2610F & 2610FB wall mount sliding door hardware
- 138F & 134F bypass door hardware
